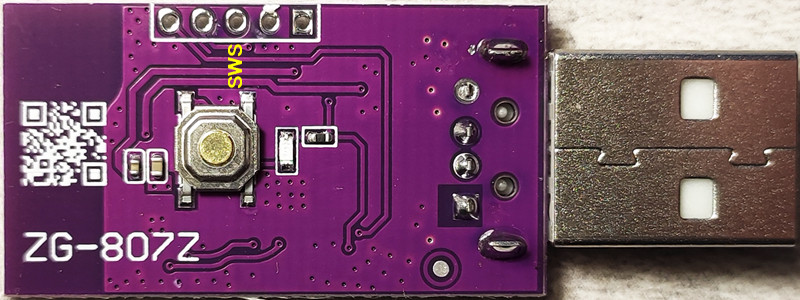

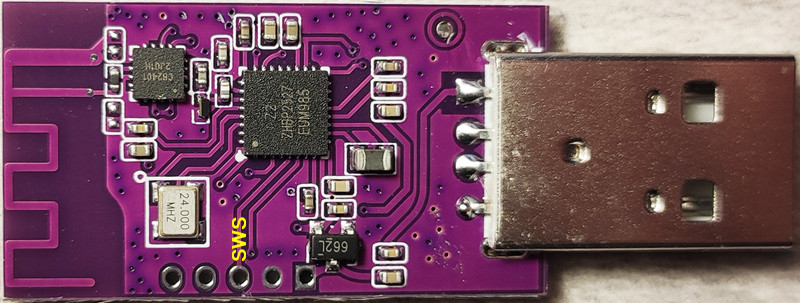

Zigbee Repeater HOBEIAN:CK-BL702-ROUTER-01(7018)

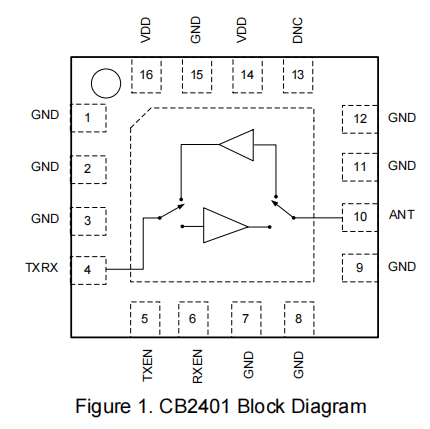

SoC: TLSR8258F1KET32 (Z2), RF: CB2401
| pin | Function |
|---|---|
| 1 | +5V USB |
| 2 | GND |
| 3 | PA7/SWS |
| 4 | PB1/TX |
| 5 | PB7/RX |
| GPIO | Function |
|---|---|
| PC3 | RF RXEN |
| PC4 | RF TXEN |
| PD4 | KEY (On:GND) |
| PA9 | LED (On:"0") |
Original FullFlash bin
1141-0201-10013001-HOBEIAN:CK-BL702-ROUTER-01(7018)
