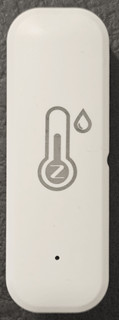

Zbeacon TH01 v2.0: Tuya ZigBee

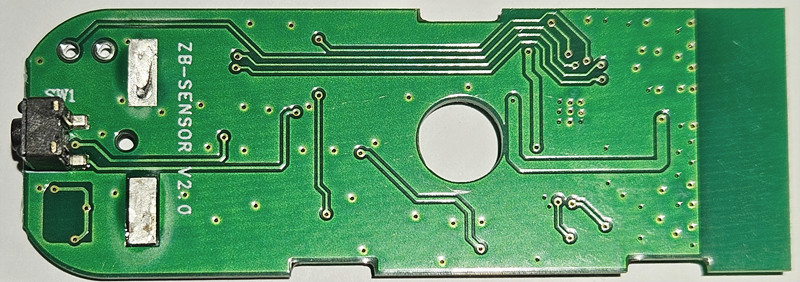

SoC: TLSR8656F512ET32, Sensor: SHT4X/G40
Custom firmware BLE, Zigbee
| GPIO | Function |
|---|---|
| PD4 | I2C SCL |
| PA0 | I2C SDA |
| PB7 | KEY (to GND) |
| PB6 | LED (On:"1") |
Original FullFlash bin
1286-0202-10933607-Zbeacon:TH01
issue
| GPIO | Function |
|---|---|
| PD4 | I2C SCL |
| PA0 | I2C SDA |
| PB7 | KEY (to GND) |
| PB6 | LED (On:"1") |
