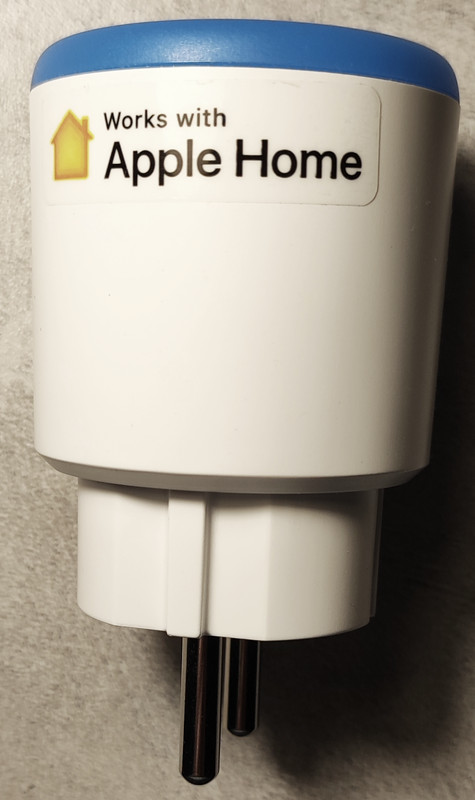

TS011F_TZ3000_gjnozsaz: Tuya ZigBee Switch with Power Monitor

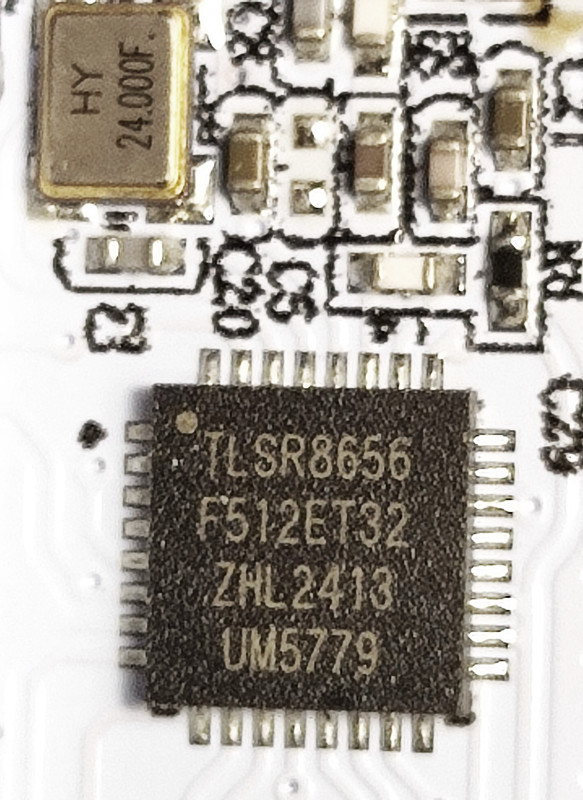

Chip: TLSR8656, Sensor: BL0942
(Отличие от TS011F_TZ3210_w0qqde0g в цвете крышки, чип имеет Flash на 512K, не поддерживает Zigbee OTA)

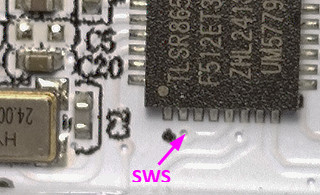

Don't use ZigbeeOTA if the chip is TLSR8656!

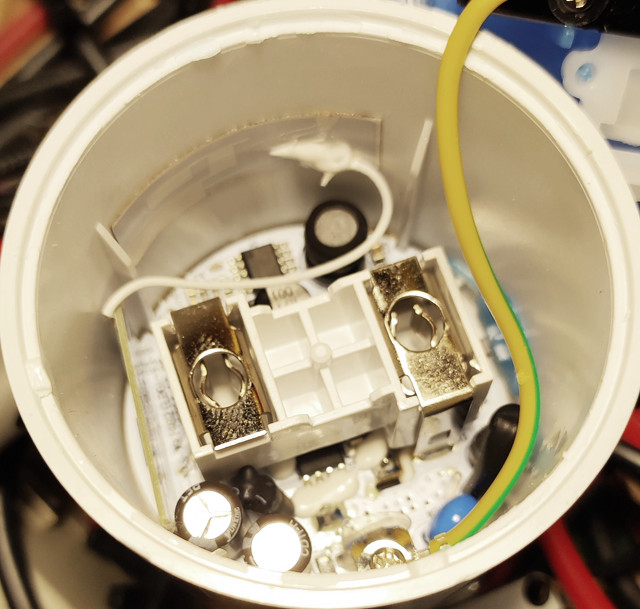

The lid of the case is glued, but it can be easily opened by lifting the lid around the circumference with a sharp object.
Custom FirmWare
| Relay | PC2 ("1" On) |
| Led | PB4 ("0" On) |
| Button | PB5 ("0" On) |
| BL0942 TX | PB7 |
| BL0942 RX | PB1 |
Original FullFlash TLSR8656 512KB
