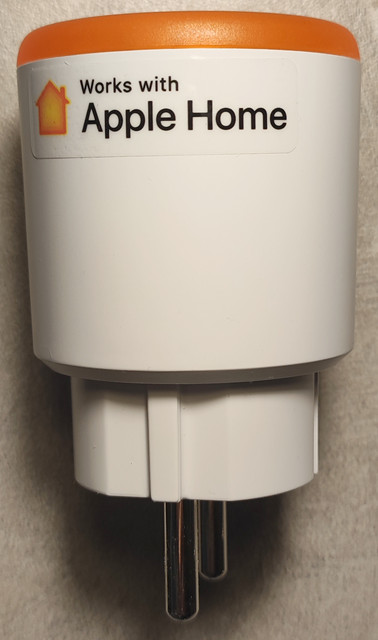

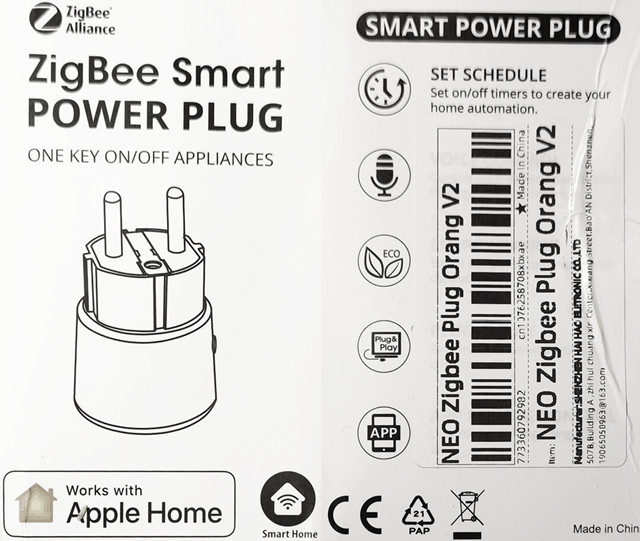

TS011F_TZ3210_w0qqde0g: Tuya ZigBee Switch with Power Monitor

---

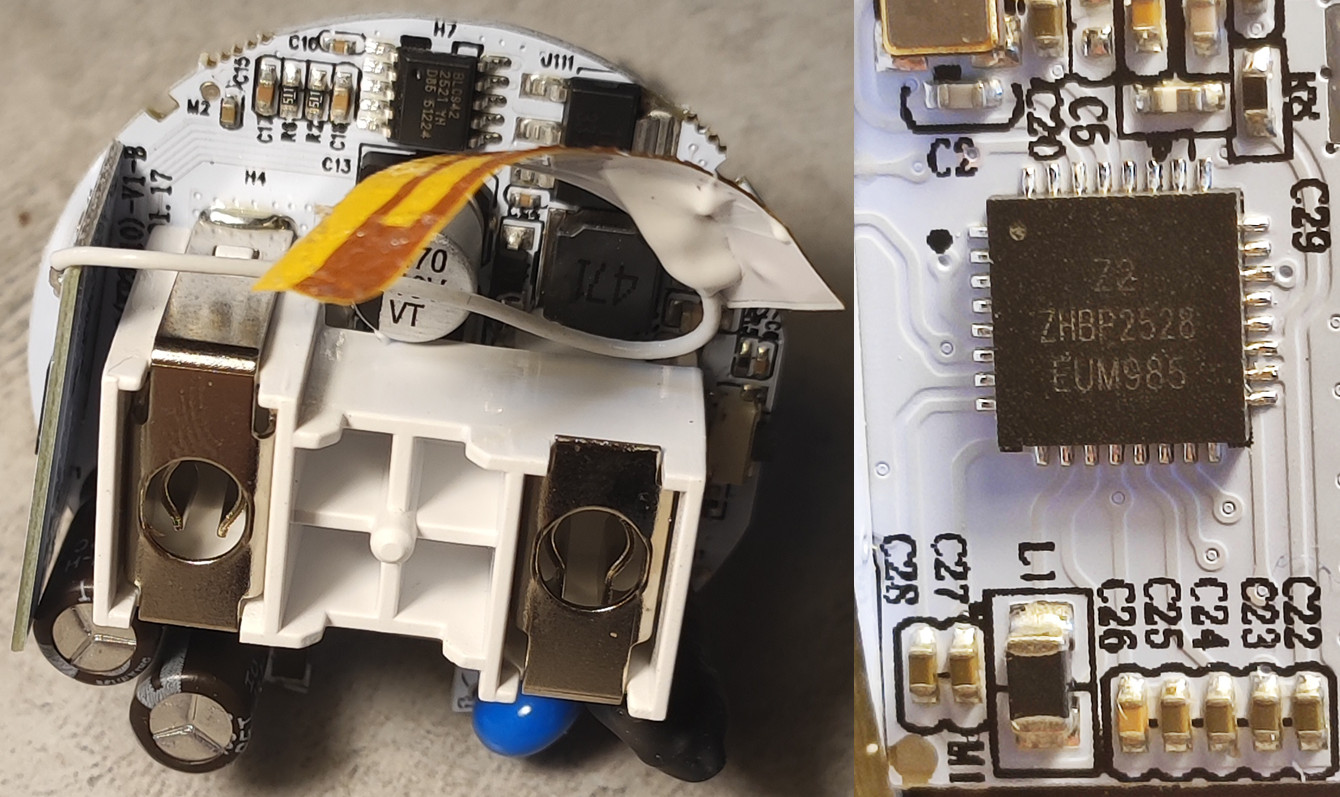

Chip: Z2 (TLSR8258), Sensor: BL0942

(Отличие от TS011F_TZ3000_gjnozsaz в цвете крышки, чип имеет Flash на 1МБ, поддерживает Zigbee OTA)

The lid of the case is glued, but it can be easily opened by lifting the lid around the circumference with a sharp object.

Custom FirmWare

Relay	PC2 ("1" On)
Led	PB4 ("0" On)
Button	PB5 ("0" On)
BL0942 TX	PB7
BL0942 RX	PB1

Original FullFlash v1 TLSR8258(Z2) 1MB
Original FullFlash v2 TLSR8258(Z2) 1MB

---
